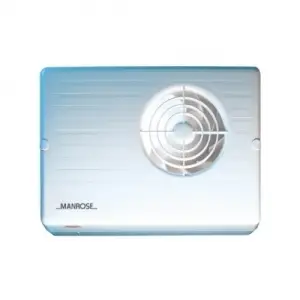

Manrose CF200H
Pros
- Straight forward installation.
- Provides a moderate extraction rate.
- Manrose provides a 3-year warranty.
- A great choice for longer duct runs.
- Comes complete with a configurable overrun timer and Humidistat.
Cons
- It is quite bulky in comparison to other models.
Summary
The Manrose CF200H follows on from the CF100 range and is another top centrifugal fan. It supplies an even more mighty, vibration-free extraction rate in your application of choice. This model has been designed primarily for applications that would require longer ducting runs.
The CF200H works great against the usual pressures of long ducts as well as any grill resistance. It comes fitted with a built-in back flap in the discharge spigot region to drastically reduce the chance of any backdraughts occurring.
This fan is suitable for bathrooms, utility rooms, cloakrooms, toilets, etc.
Main Features
- Our Rating: 8.8/10
- Maximum Sound Level: 42dB
- Perfect for longer ducting
- Wall or ceiling mounted
- Backdraught Flap
- Adjustable Overrun Timer
- Humidity Sensor
- Maximum Flow Rate: 31 litres per second (110m³/hr)
- Double Insulation – no earth required
- Building Regulations on Ventilation (F1) compliant
- IP44 Rated
- 3 Year Warranty
Extraction Rate
The Manrose CF200H has a moderate extraction flow rate of 110m3/hr, around 31 litres per second. While this extractor fan doesn’t have the highest extraction rate out there, this is to be anticipated as this fan’s manufacture was intended for extracting airflow over longer duct runs.
Power Consumption
This centrifugal fan by Manrose operates at 1,400 RPM and the motor itself runs at 17 Watts. Although the wattage and RPM are lower than the CF100 series, it has a larger pressure of 120 p.a and will extract a lot more airflow and moisture.
Noise Level
The Manrose CF200H outputs a noise level of around 45dB at 3 metres distance. This is not the low volume fan around but, keep in mind, as mentioned earlier, this is a strong extractor fan and it will get the job done.
Design
This fan was manufactured from durable and high-quality ABS plastics, selected for its long-lasting robustness. It also means cleaning is easier, ensuring that the CF200H will operate well for a great deal of time.
One thing to point out is, via a customer’s comments, is that if you are replacing an existing Manrose extractor fan, the mounting points will likely not be in the same place. In this particular example, the customer was reviewing the Manrose QF100H, which has completely different mounting points than this CF200H model, especially as the CF200H is quite a deal larger than the other models in the series.
On the topic of its size, as seen in the various images on the page, it isn’t a square shape like most other extractor fans, but rather a large rectangular shape. This is important to keep in mind when you are planning its location.
With regard to its motor, it features a single-phase induction motor with bearings that are pre-oiled. This decreases the need for any maintenance while also making sure that it will last much longer.
Overrun Timer
This run-on timer starts from 1 minute and goes up to 20 minutes. It is usually advisable to configure the overrun timer before you have installed the fan.
In order to set it, ensure that the power is turned off first! Then you need to first take off the wiring cover. Next, insert a small flat-headed screwdriver and gently twist anti-clockwise to increase the time, and clockwise to reduce. Previous customers have commented that it is quite sensitive, so take care when configuring it.
Humidistat
Additionally, as with all Manrose unit numbers, the “H” means this model has a built-in humidistat or humidity sensor. This humidity control is fully adjustable from 40%RH to 90%RH. It is usually advisable to configure the humidistat before you have installed the fan.
In order to set it, ensure that the power is turned off first! Then you need to first take off the wiring cover. Next, insert a small flat-headed screwdriver and gently twist anti-clockwise to increase the time, and clockwise to reduce. Just like the run-on timer, customers have commented that it is sensitive, so take care when adjusting it.
Related: Best Humidistat Extractor Fan
Warranty
This extractor fan by Manrose features a 3-year warranty or 30,000 hours. They have a dedicated technical support line on their website if you have any questions.
Manrose CF200H Reviews
The Manrose CF200H has been reviewed many times by verified customers that have provided genuine feedback. Click below to read the verified customer reviews in order to make an informed decision.
Manrose CF200H Extractor Fan Instruction Manual
You can download the Manrose CF200H Extractor Fan Instruction Manual here.
You can also download the Manrose CF200H Datasheet here.
What’s Included in the box?
- 1 x CF200H Fan
- 1 x Instruction User Manual
Pros and Cons
- Straight forward installation.
- Provides a moderate extraction rate.
- Manrose provides a 3-year warranty.
- A great choice for longer duct runs.
- Comes complete with a configurable overrun timer and Humidistat.
- It is quite bulky in comparison to other models.
Verdict: Should You Buy The CF200H?
And that concludes our review! If you’re after an even more powerful centrifugal fan by Manrose, moderately priced, with a great extraction rate AND both a Humidity Sensor and Overrun Timer, then you should definitely consider getting the Manrose CF200H as your replacement extractor fan. One consideration to keep in mind is that this unit is bigger than other models and you will need to factor this in with the compatibility of the aesthetics of your bathroom.
If you think you’ll need a smaller version of this fan, be sure to check out our full Manrose CF100H review.
Additionally, they also make this model without a humidity sensor – if this is of interest definitely check out our Manrose CF200T review.
